Four Legged Robot

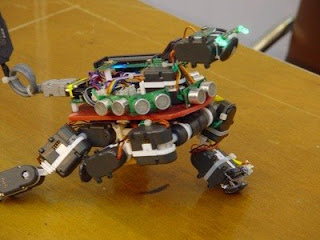

I made a four legged robot. It could walk, build a map and avoid obstacles. Histogram In Motion Mapping(HIMM) and Vector Field Histogram(VFH) were used for navigation and I implemented the control program which could build the 3D map of environment, generate behaviors of the robot and test the algorithms of map-building and obstacle avoidance.

Spec : 14DOF, AI Motor, 1 LCD, PIC MCU, 5 Ultrasonic Sensors, 1 Bluetooth, 1 Touch Sensor
I won several contests in Korea with this robot.


Architecture of Four Legged Robot

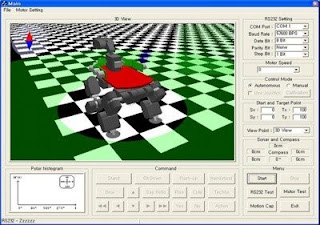

Robot Control Program
